☆ Professionally used for cutting, single-sided laser drilling and double-sided laser engraving of aluminum profiles.

☆ High efficiency: 45° saw blade servo feed, high efficiency.

☆ Large range: 1000-6600mm, profile width 150mm, height 150mm.

☆ High power: equipped with 3KW direct-connected motor, the efficiency of cutting profiles with insulation materials is 30% higher than that of 2.2KW

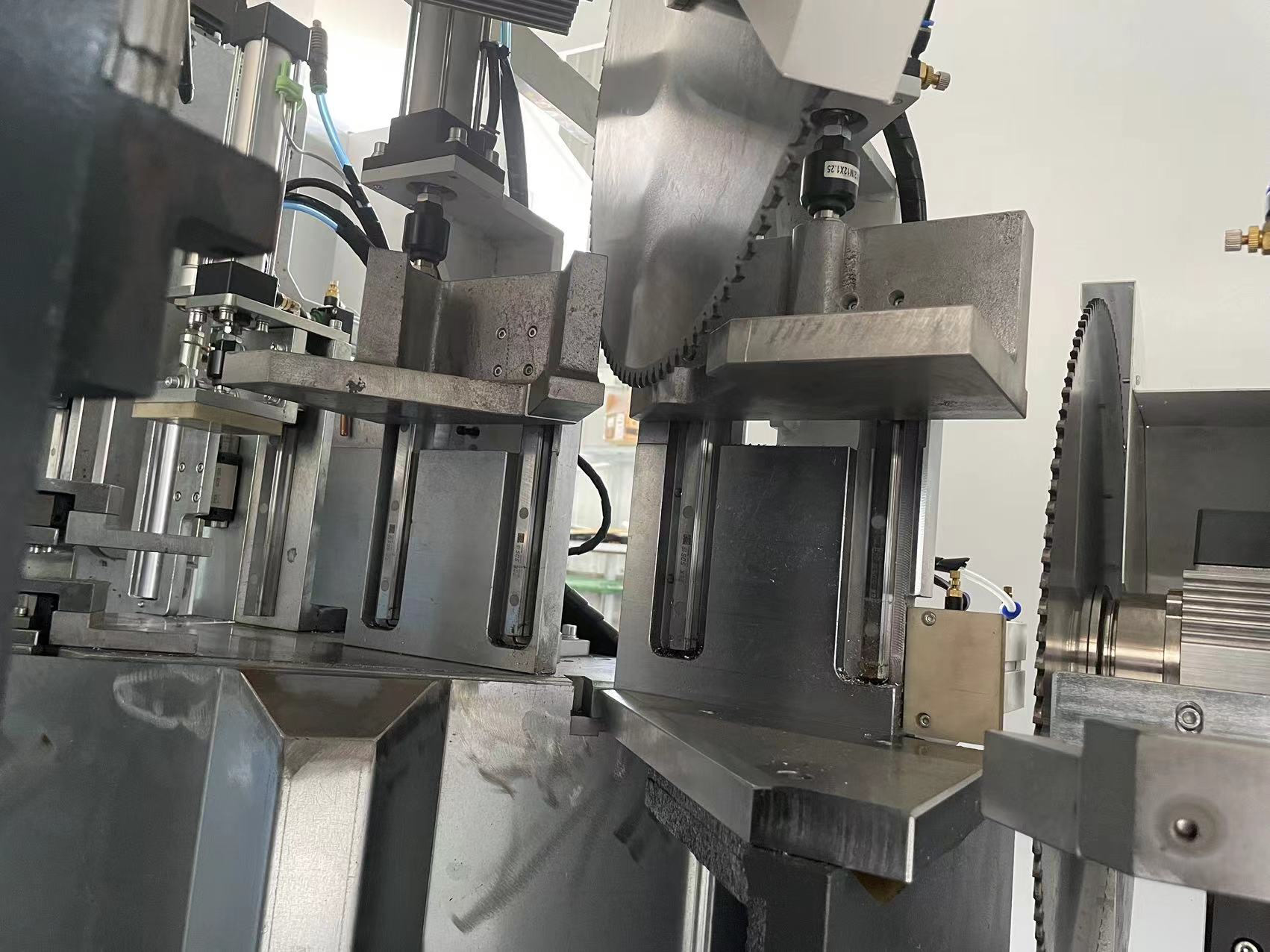

☆ High precision: integral casting cutting mechanism, 3 fixed angles: 2 45° + 1 90°, cutting length error ±0.5mm, cutting surface flatness ≤0.10mm, cutting angle error ±5′.

☆ Double-sided laser engraving, accurate positioning.

☆ High laser processing efficiency: equipped with laser cutting device on the rear side, the power can be automatically adjusted according to the wall thickness of the profile, and the cutting quality is good. Automatically switch the engraving or cutting state according to the process requirements to perform engraving or cutting.

☆ The front side is equipped with a dedicated laser marking machine, which can perform laser marking on both sides at the same time with high efficiency.

☆ Fool-style operation: no skilled workers are required, no robot adjustment is required (it can automatically rotate and clamp special-shaped materials), no need to consider the profile section (Z-shaped fan and conversion frame are also OK), no need to customize the mold, no need to consider the profile height.

☆ High degree of automation: one general worker can operate it, put 7 profiles at a time, and automatically complete feeding, cutting and unloading.

☆ Intelligence: The feeding system is fully servo-controlled, intelligently identifies profile data (height, wall thickness), and intelligently adjusts processing parameters (feed speed, feed position)

☆ 0 mistakes: The equipment has its own error-proofing mechanism.

☆ Data import method:

1. Software docking: connect with ERP software, such as: Klaes, Jopps, Mendaoyun, Zaoyi, Xinger, etc.;

2. Network/USB import: follow the factory's existing material order format;

3. Manual input.

☆ Equipped with automatic chip conveyor (material head) and automatic dust collection device (aluminum chips), which reduces the frequency of cleaning and improves work efficiency.

☆ Double-layer protection of the cutting chamber, low noise, safety and environmental protection.

☆ Safety: gas and electric protection device, mechanical protection device to ensure safe production.

☆ Standard tool life management system, automatic reminder when saw blade needs to be sharpened and replaced.

☆ Standard automatic maintenance reminder function to eliminate equipment hidden dangers in advance and improve equipment utilization rate.

☆ Standard production capacity statistics, equipment status time statistics, real-time monitoring, controllable delivery date, reduce inventory, and improve capital flow utilization.

☆ With remote service function (maintenance, maintenance, training), save service time, reduce downtime, and reduce the factory's dependence on skilled workers.
