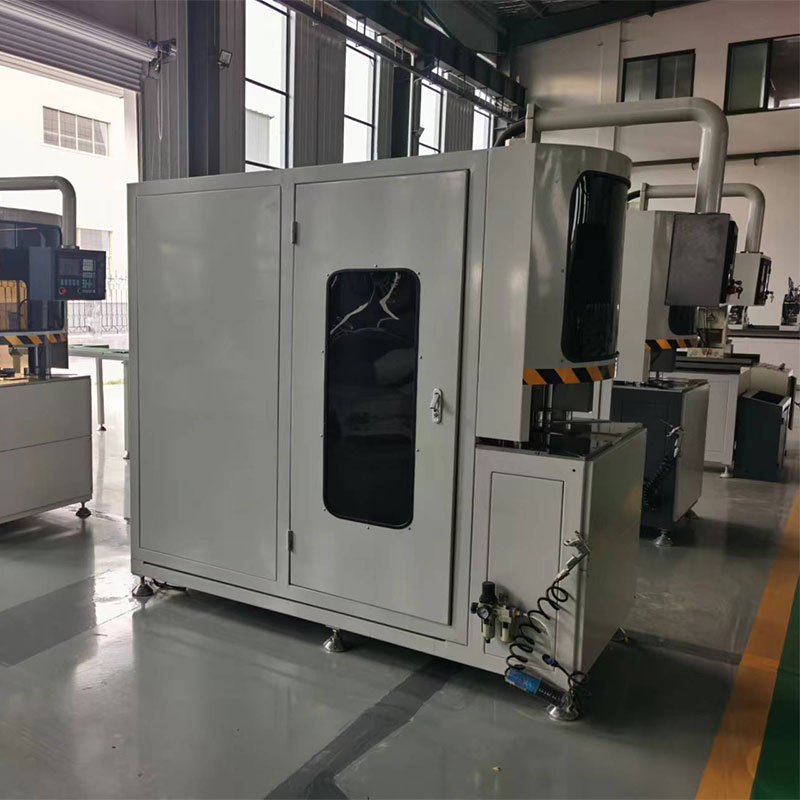

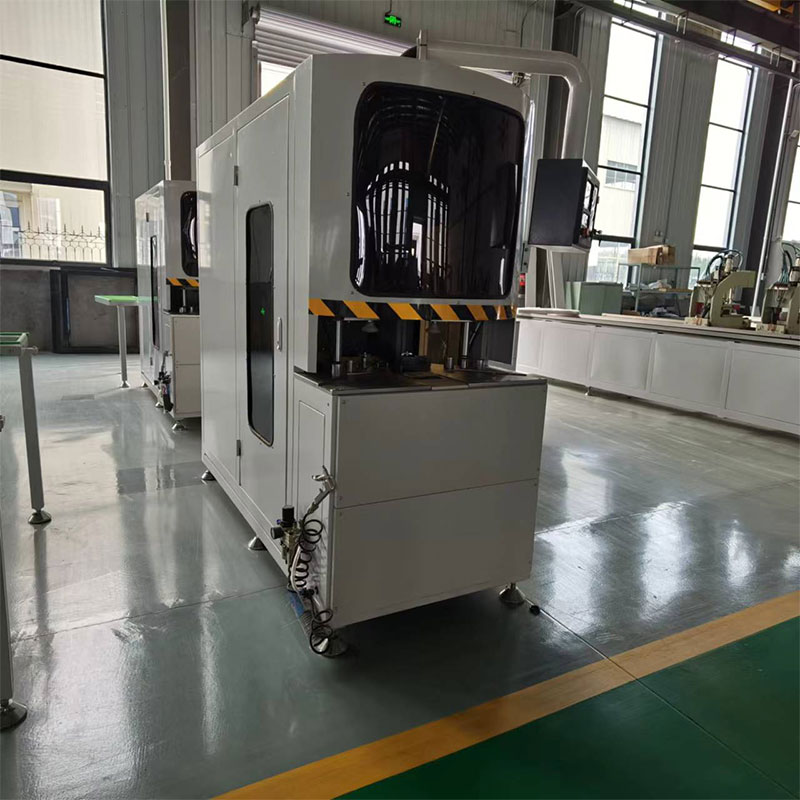

CSQJB-CNC-120
Plastic Door and Window CNC Corner Seam Cleaning Machine

Contact us

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

86-186-6370-9391

Business Support

8618396817660

WhatsApp

Product Introduction

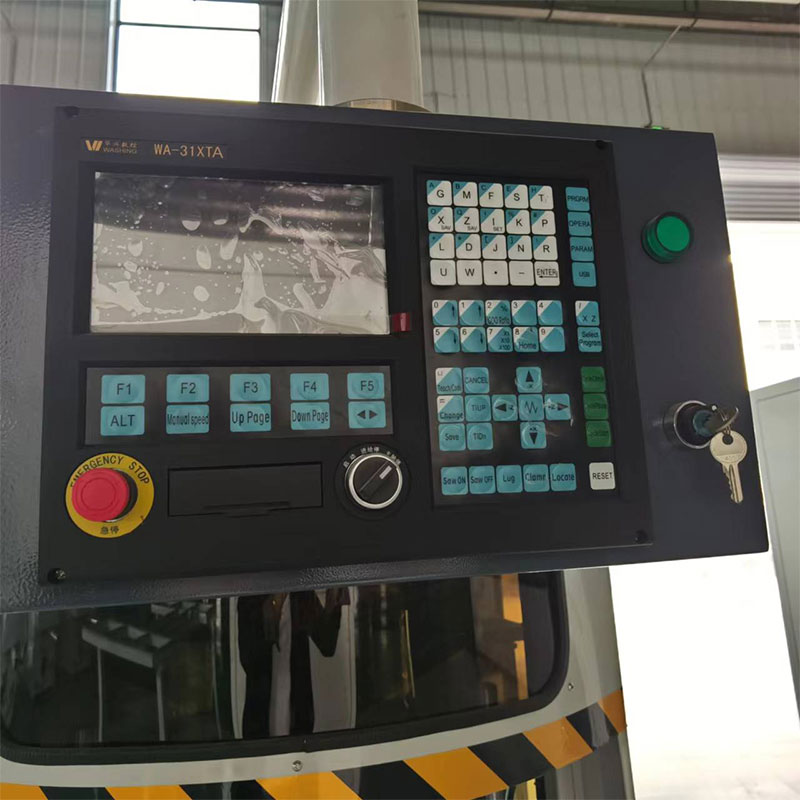

■ Designed for cleaning corner seams of plastic door and window welds, controlled by a two-axis CNC system for simple operation.

■ Capable of storing processing programs for various profile sizes, ensuring one-touch operation for secondary processing.

■ Main components such as servo drive systems, CNC systems, solenoid valves, and triplets use imported brand-name products for reliable performance and long service life.

■ Unique internal positioning ensures precise cleaning of window and door welds.

■ Capable of arc compensation and oblique line compensation to meet the high-quality window and door production needs of various cross-section profiles.

■ Customizable different tools for different profile sections to meet varying corner cleaning requirements.

Product Details

- Input power supply: 380V/50Hz

- Input power: 1.7kW

- Main milling cutter speed: 2,800r/min

- Working air pressure: 0.5~0.8MPa

- Air consumption: 80L/min

- Processing profile height: 30~120mm

- Processing profile width: 20~120mm

- Dimensions: 1,570×2,670×2,070mm

- Weight: Approximately 750kg
