■ Suitable for precise processing of various holes, grooves, water slots, etc., in aluminum door and window or curtain wall profiles.

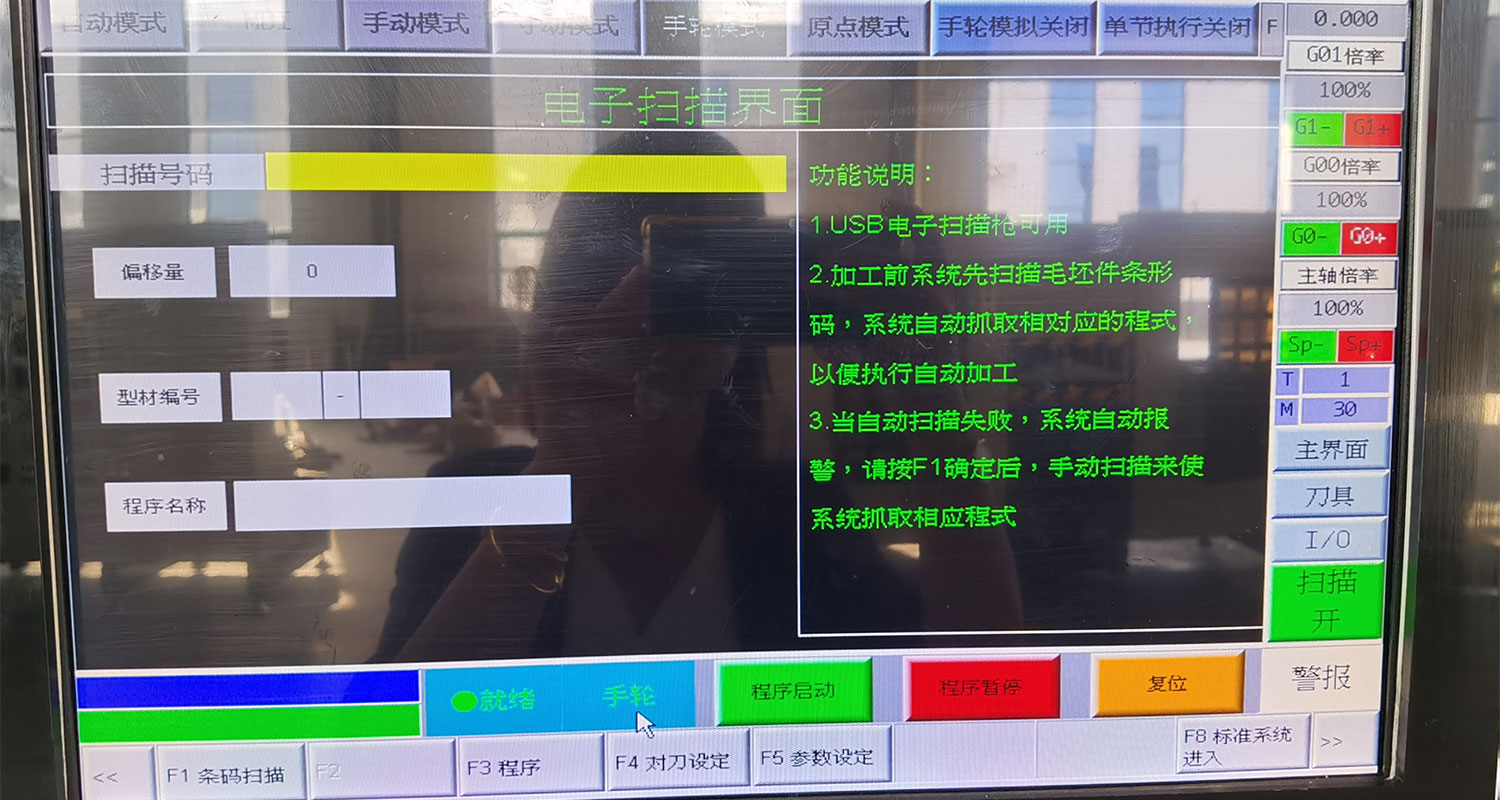

■ Intelligent CNC system and intuitive human-machine interface make operation more convenient and efficient, with all processing steps completed automatically without manual intervention, ensuring high work efficiency, processing accuracy, and safety.

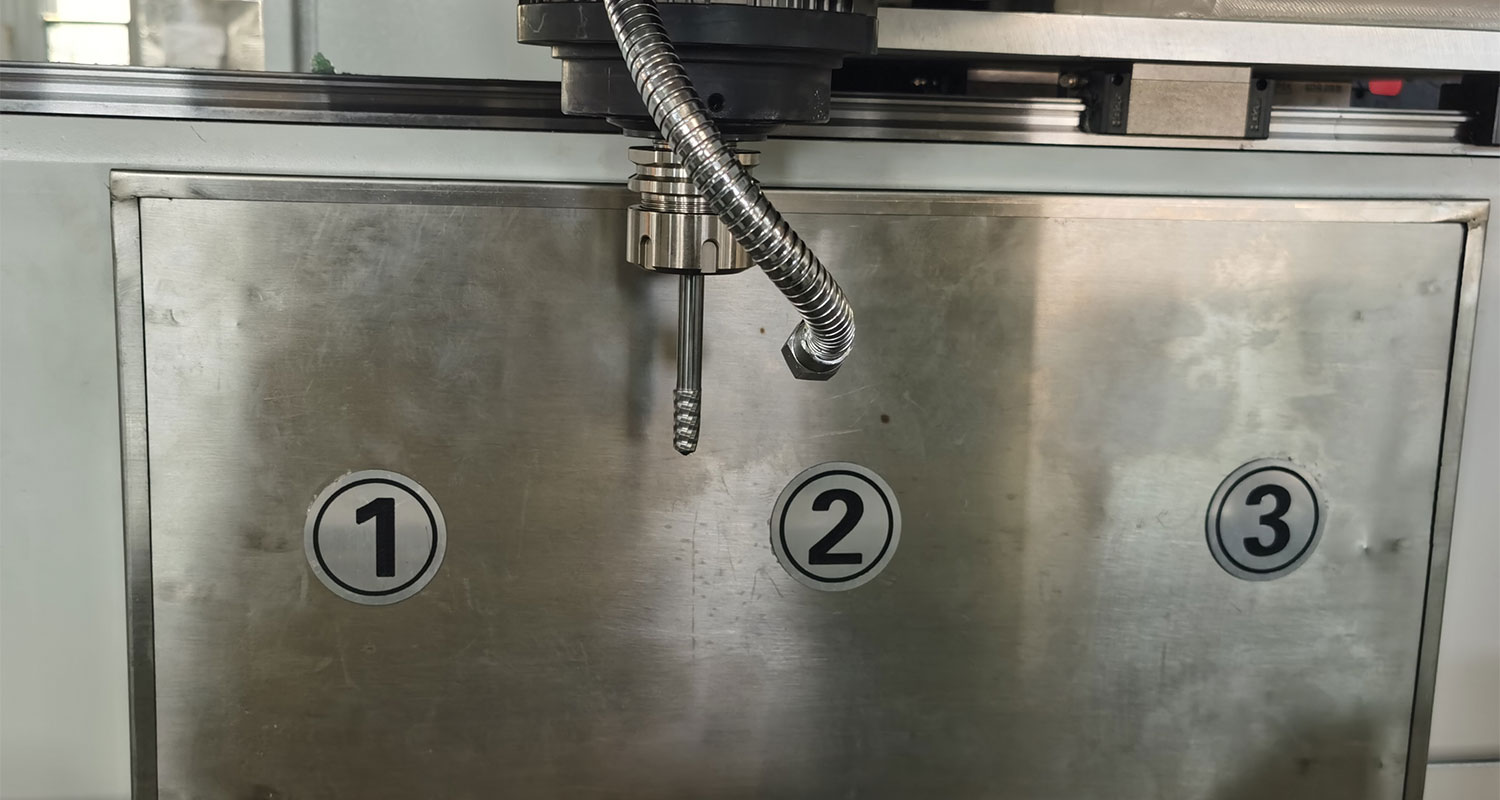

■ Equipped with a three-position tool magazine for automatic tool change during processing, enabling milling of different diameters.

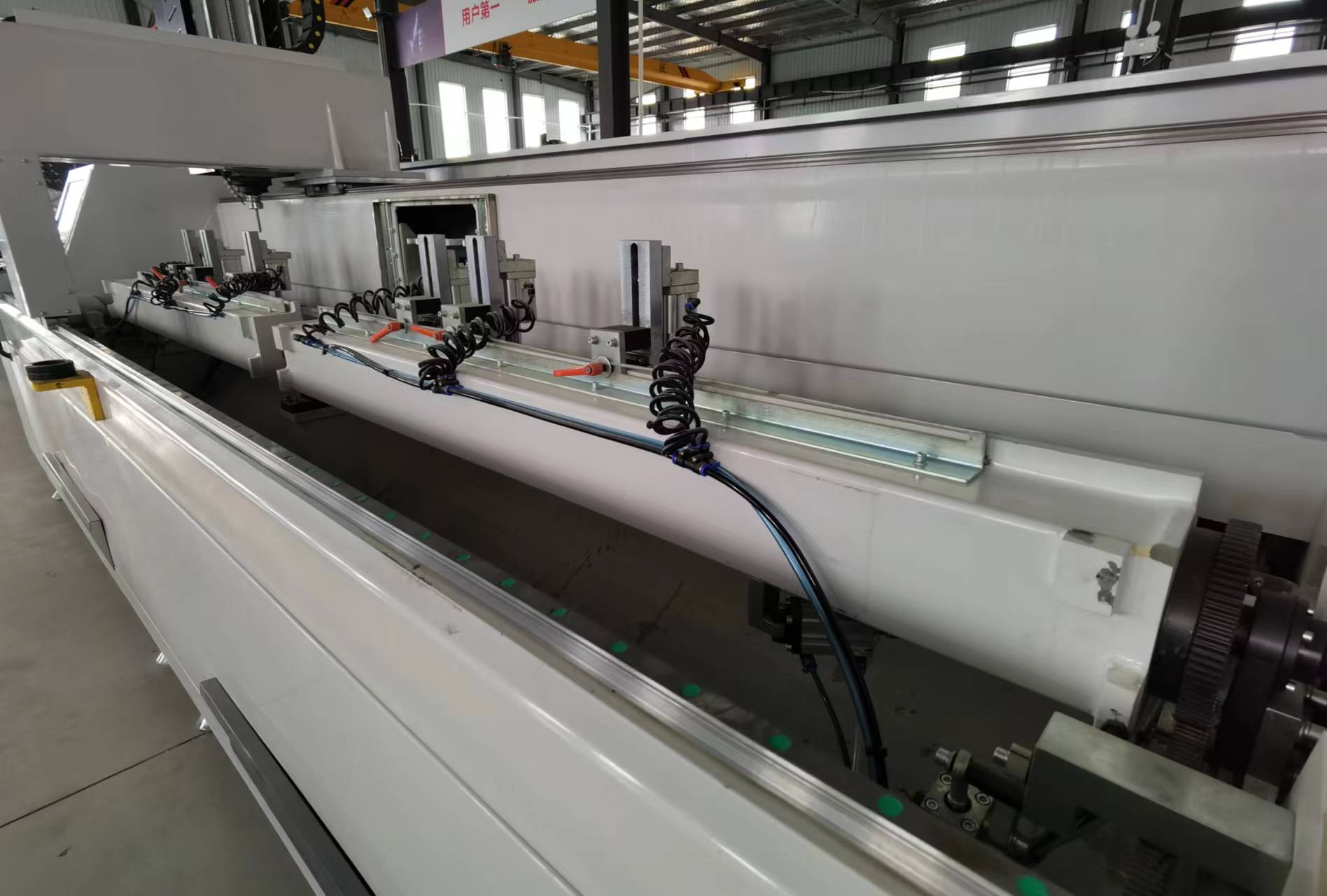

■ The rotating worktable can switch between -90°, 0°, and +90° positions, allowing for milling of all holes on three faces in one clamping operation.

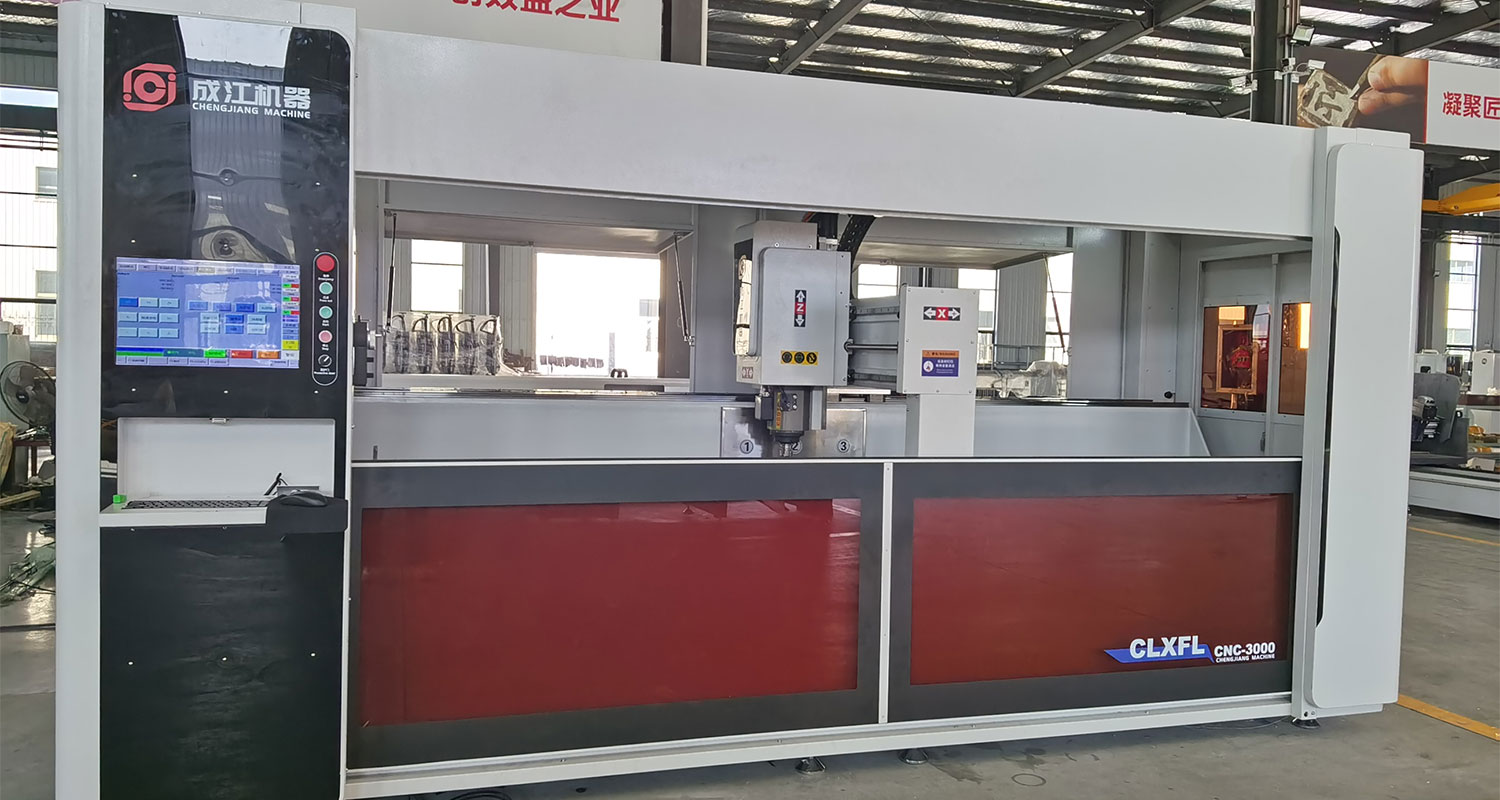

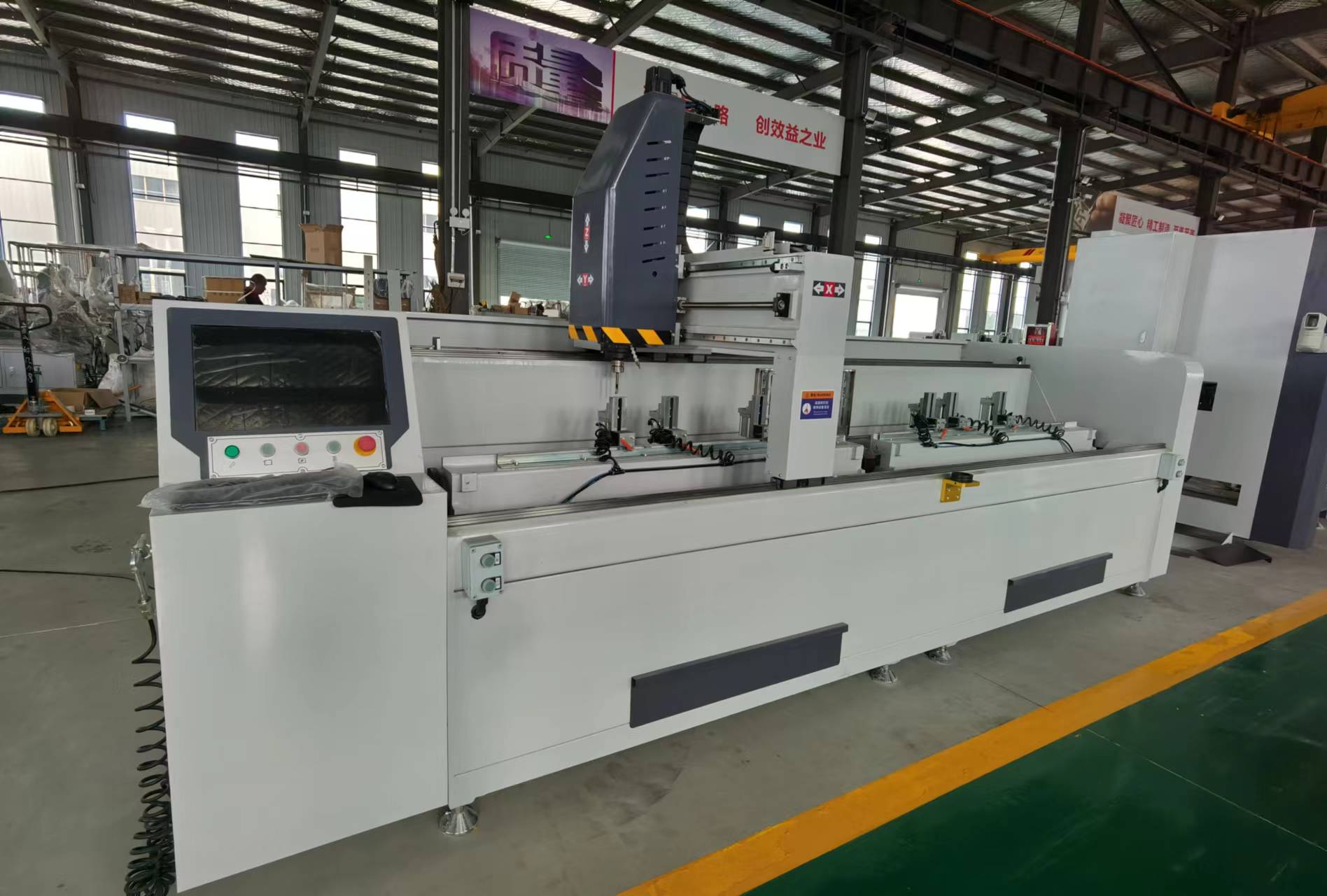

■ Designed with a gantry structure for high body strength, good rigidity, stable and reliable performance, high working accuracy, and all actions are achieved by servo motors and pneumatic systems.

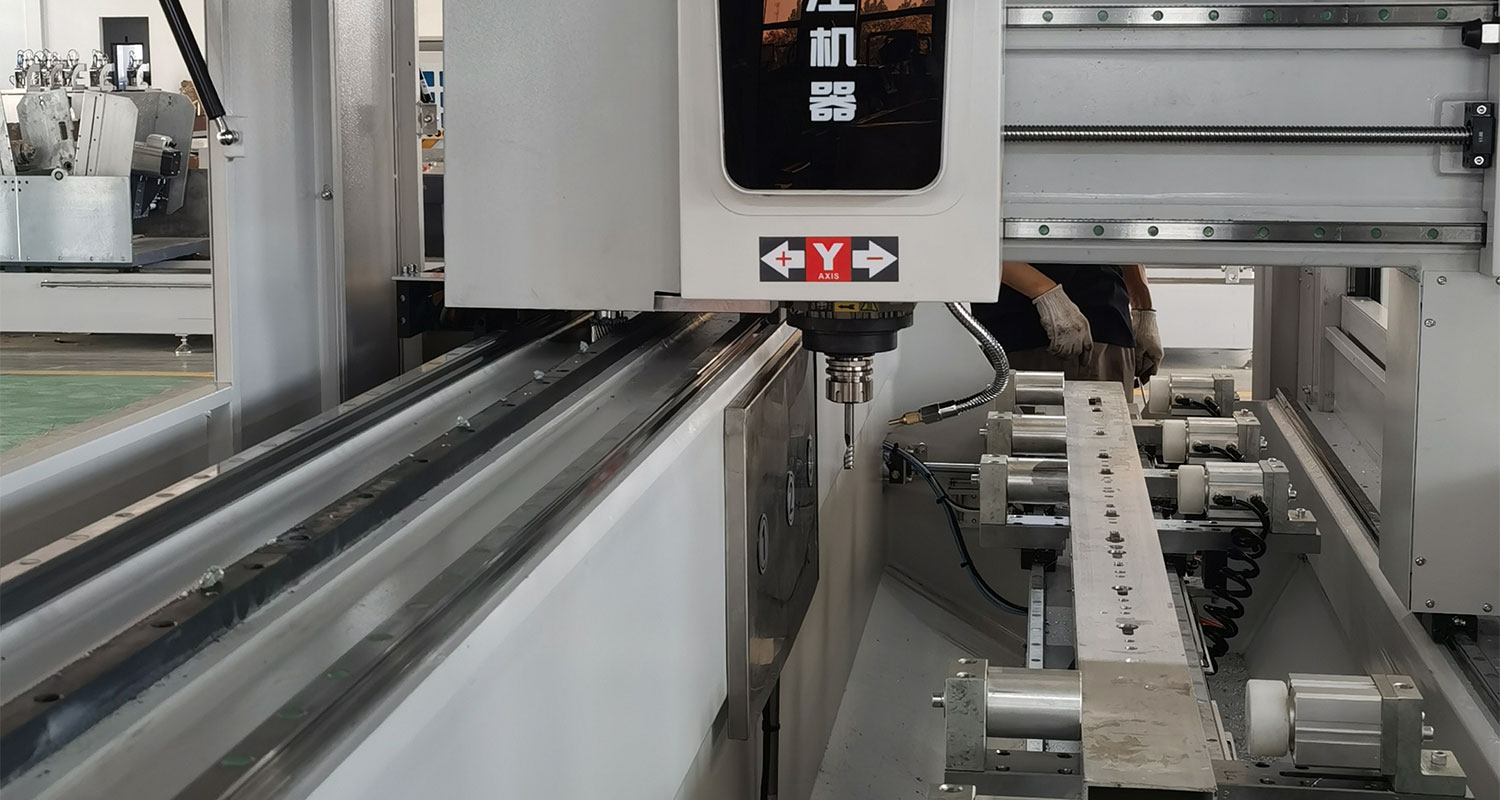

■ Motion pair uses linear motion bearings for low resistance, high precision, ensuring smooth motion of the X, Y, and Z axes.

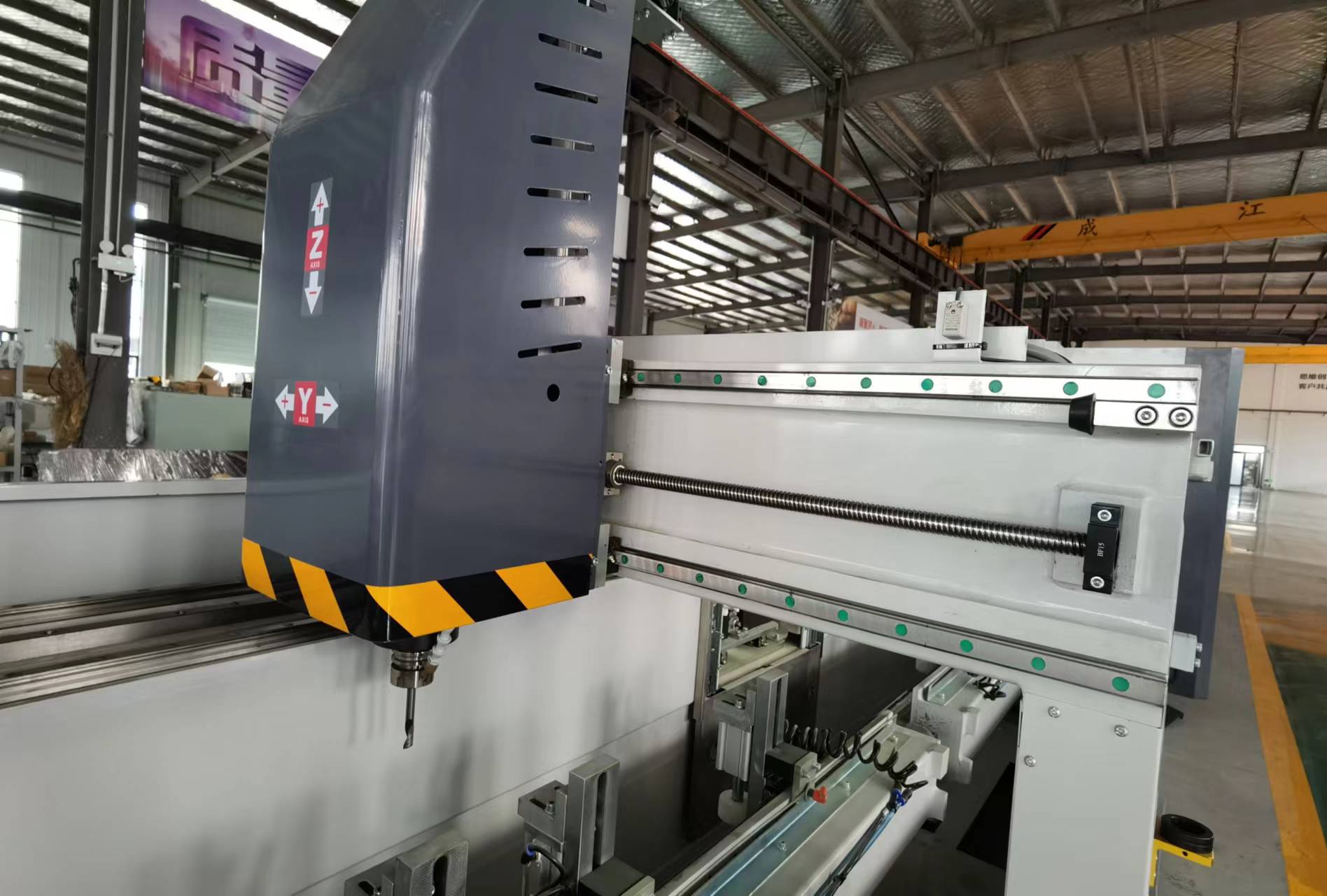

■ X-axis uses bevel gear rack transmission for power, while the Y and Z axes use ball screw pairs to ensure processing accuracy.

■ The main components of the machine head are made of cast iron and high-strength aluminum alloy, with a compact and rational structure, ensuring high strength.

■ Equipped with an imported high-speed electric spindle for stable rotation, low noise, and strong cutting capability.

■ Unique chip collection device for a cleaner work environment.
