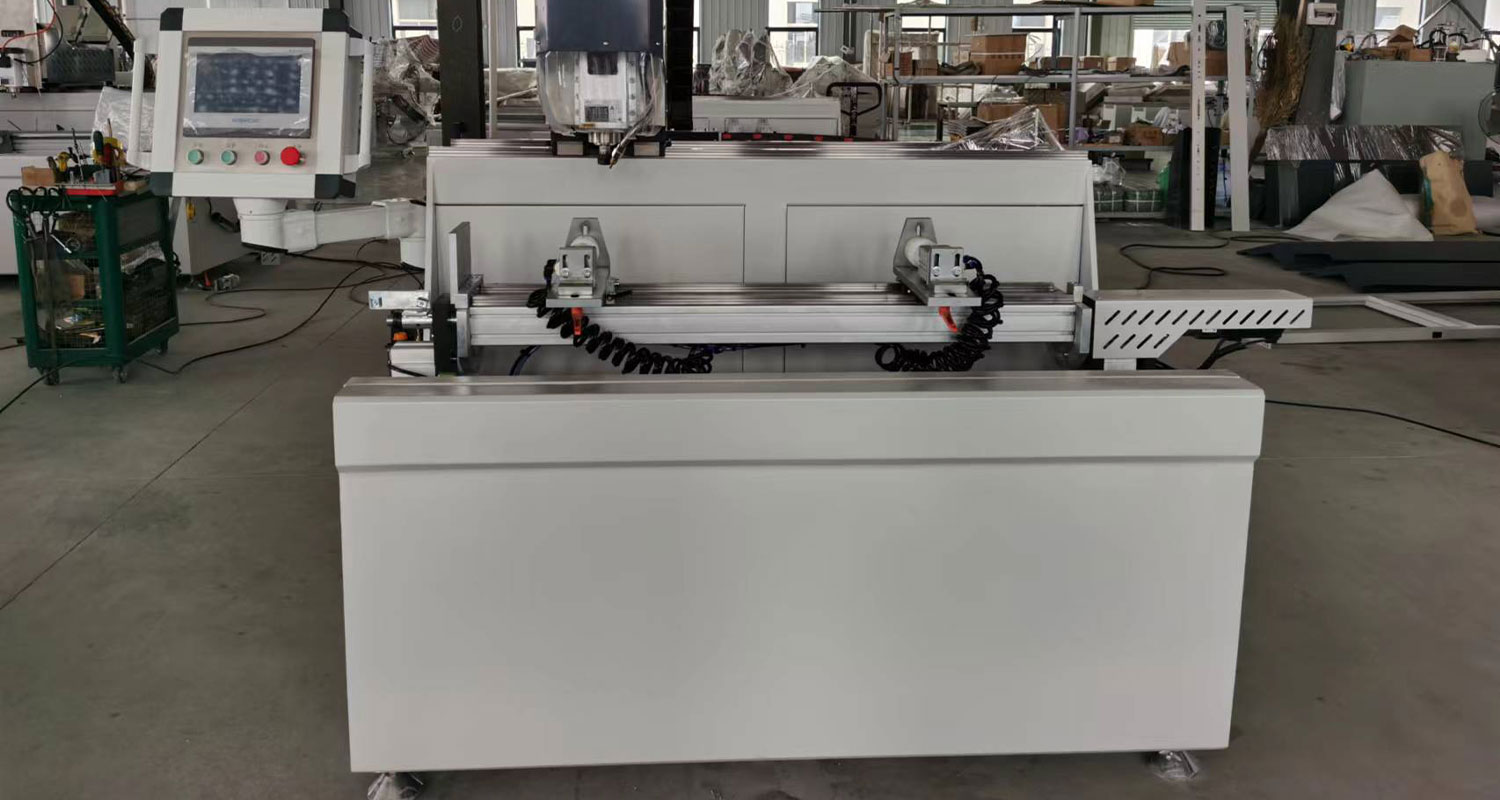

CLXFA-CNC-1200
Aluminum Profile CNC Drilling and Milling Machine
Customizable processing length

Contact us

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

86-186-6370-9391

Business Support

8618396817660

WhatsApp

Product Introduction

■ Suitable for drilling, milling slots, irregular holes, round holes, etc., in aluminum alloy and plastic steel profiles.

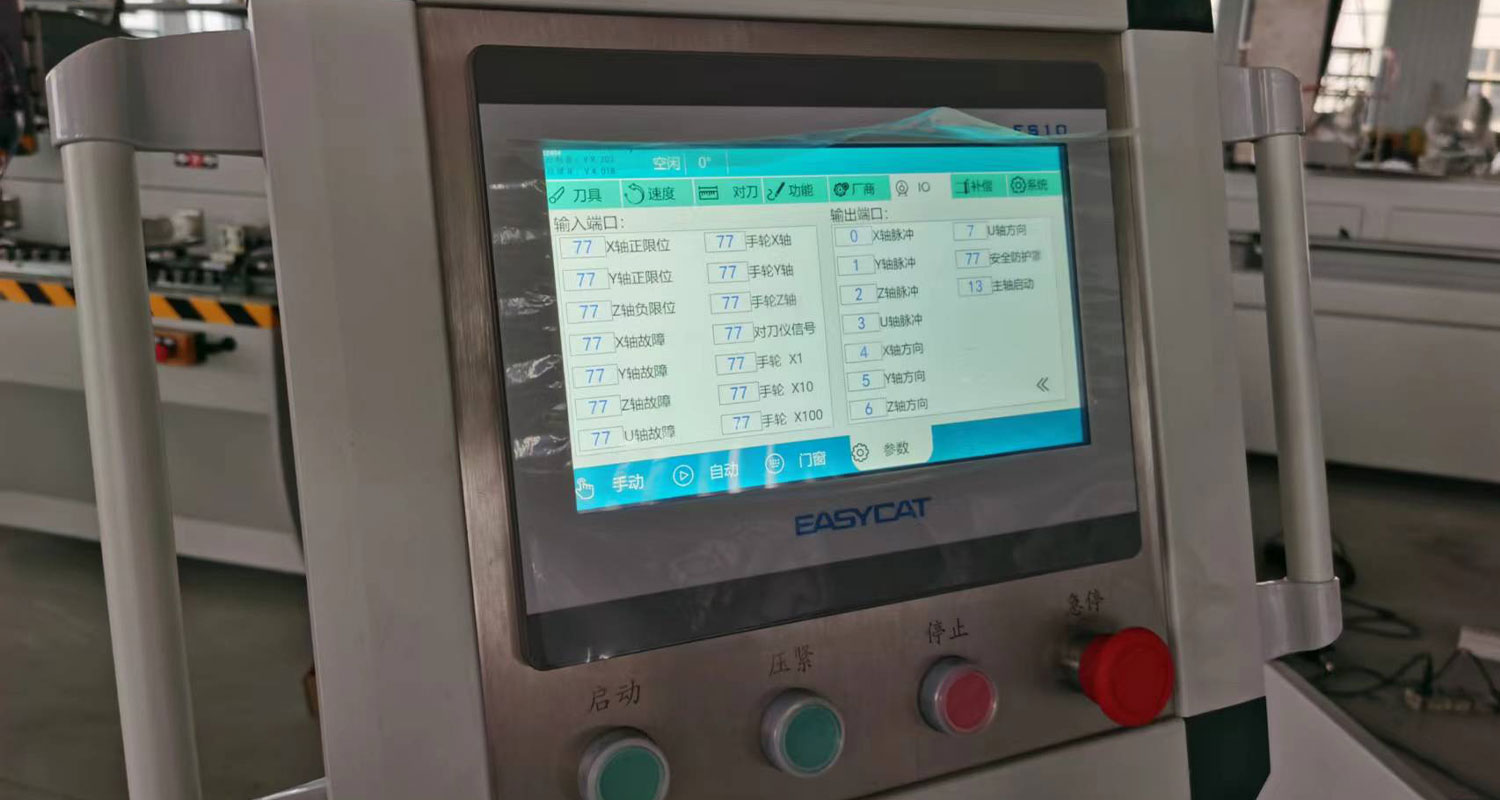

■ Intelligent CNC system and intuitive human-machine interface make operation more convenient and efficient.

■ Equipped with a safety protective cover function that automatically raises and lowers during processing to ensure safety.

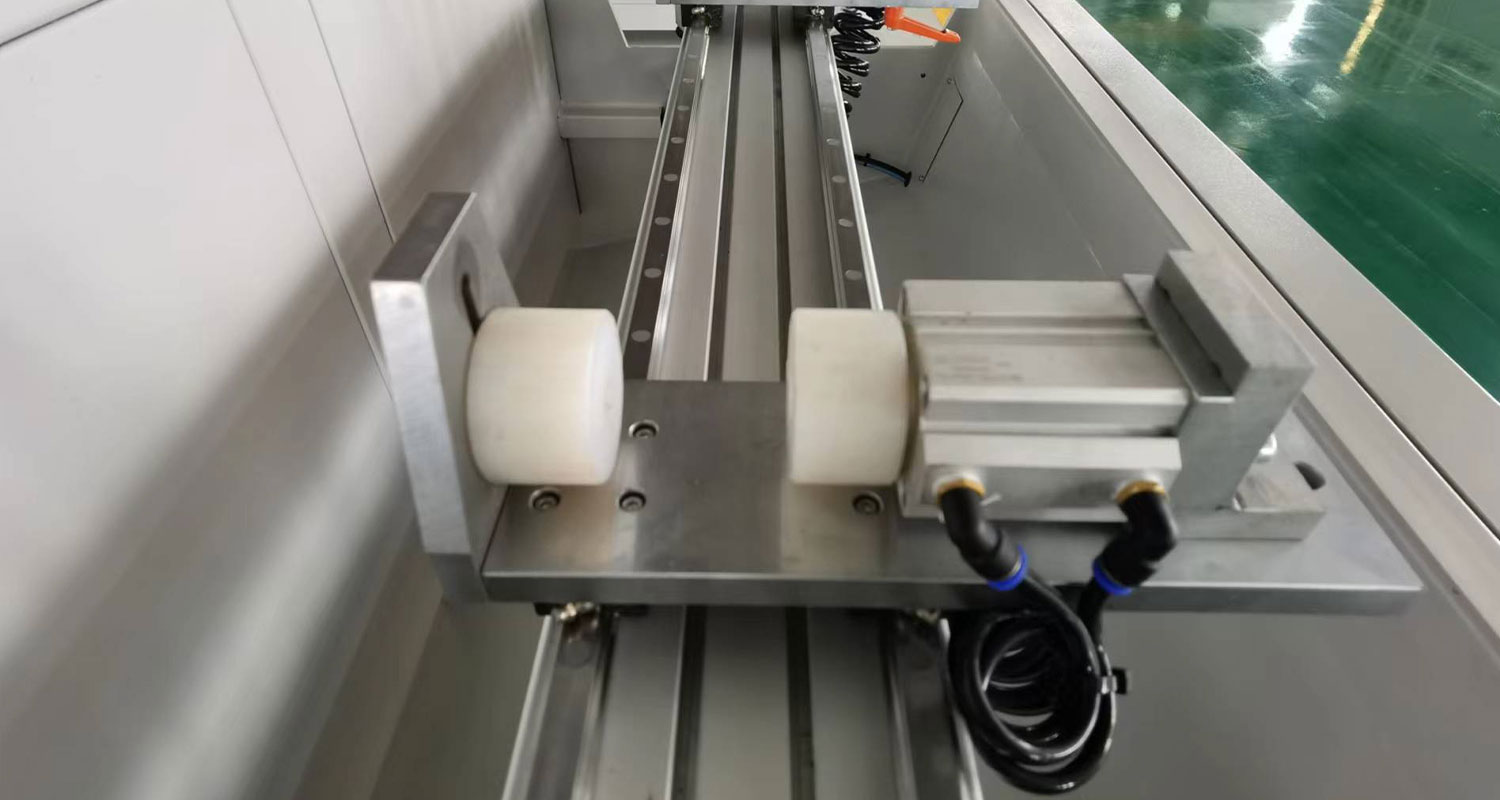

■ Utilizes high-precision linear guide pairs, ball screws, and servo motors to ensure smooth motion with high positioning and processing accuracy.

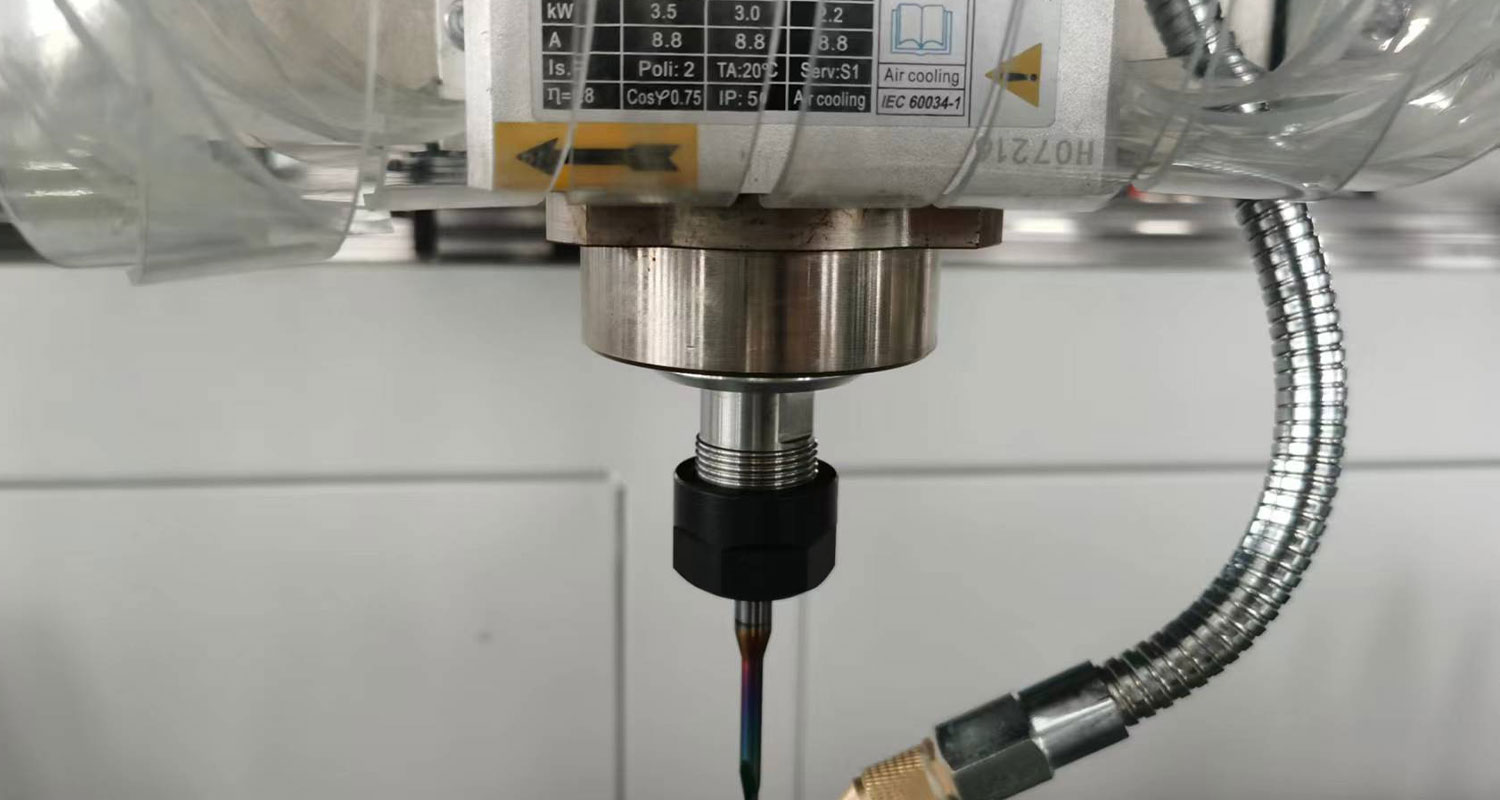

■ Equipped with an imported high-speed electric spindle for stable rotation, low noise, and strong cutting capability.

■ The rotating worktable can freely switch between -90°, 0°, and +90° positions to achieve milling of three faces in one clamping operation.

Product Details

- Input power supply: 380V/50Hz

- Spindle power: 3.5kW

- Spindle speed: 18,000rpm

- Working air pressure: 0.5~0.8MPa

- X-axis traverse: 1,200mm

- Y-axis traverse: 250mm

- Z-axis vertical travel: 250mm

- X-axis feed rate: 0~60m/min

- Y-axis feed rate: 0~15m/min

- Z-axis feed rate: 0~15m/min

- Worktable position: -90°, 0°, +90°

- Processing range: 1,000×100×200mm

- Tool handle type: ER25- Ф8mm

- Dimensions: 2,200×1,500×1,950mm

- Weight: Approximately 700kg
