CLXCA-60
Plastic Door and Window Automatic Water Slot Milling Machine

Contact us

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

86-186-6370-9391

Business Support

8618396817660

WhatsApp

Product Introduction

■ Suitable for milling processing of plastic door and window water slots, with a super rigid design for aesthetically pleasing slot machining.

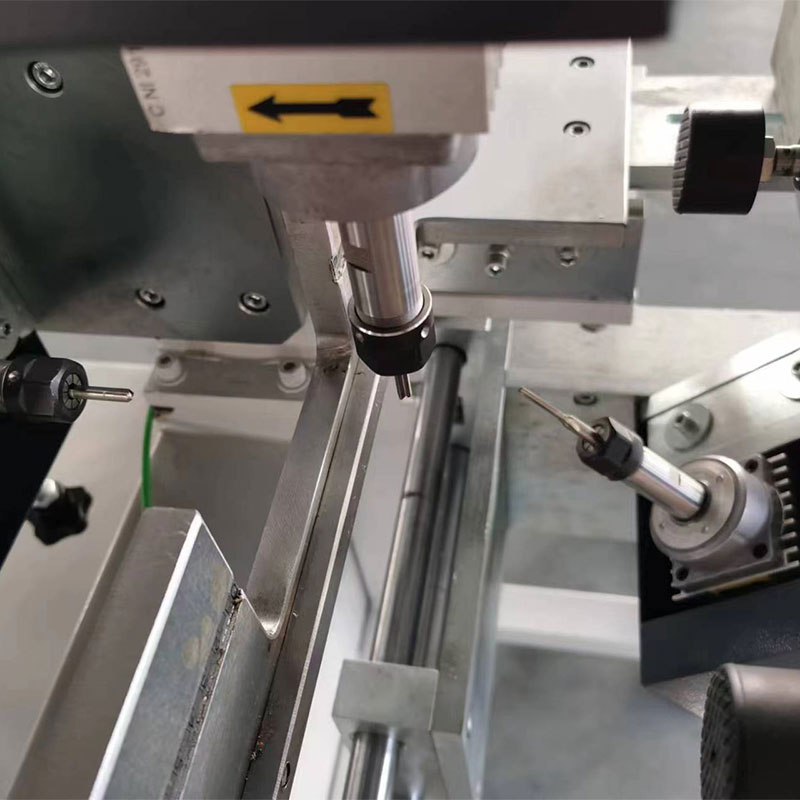

■ Automatic tool change at the lower head, clamping once, automatically completing the machining of the water slots at both ends of the profile.

■ Higher production efficiency to meet the needs of mass production effectively.

■ Independent milling feed mechanism, no need for specialized maintenance, simple operation.

■ Convenient tool position adjustment to adapt to different profiles.

■ Continuous adjustable milling slot length within 60mm, wide adaptability range. The bed adopts a linear bearing motion pair to ensure long-term working accuracy.


Product Details

- Input power/power: 220V/50Hz    1.14kW

- Working air pressure: 0.5~0.8MPa

- Spindle speed: 25,000r/min

- Milling cutter diameter: Ф5, Ф4mm

- Milling slot length: 0~60mm

- Dimensions: 1,200×1,200×1,800mm

- Weight: Approximately 300kg
