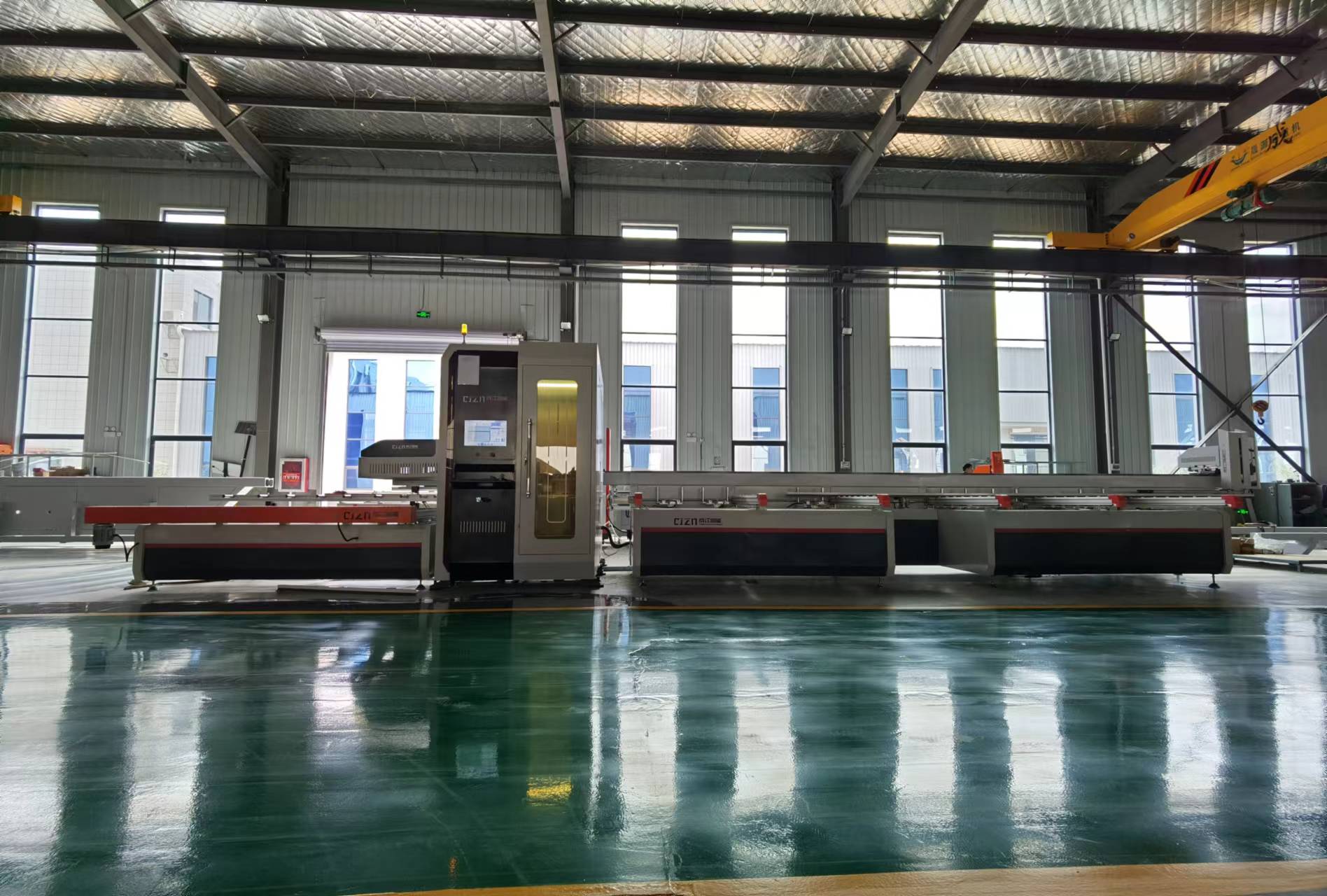

CLJZD-CNC-6600
Aluminum Profile CNC Saw Cutting Processing Center

Contact us

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

86-186-6370-9391

Business Support

8618396817660

WhatsApp

Product Introduction

■  The CNC operating system can recognize material lists by scanning codes and can be connected to customer ERP software.

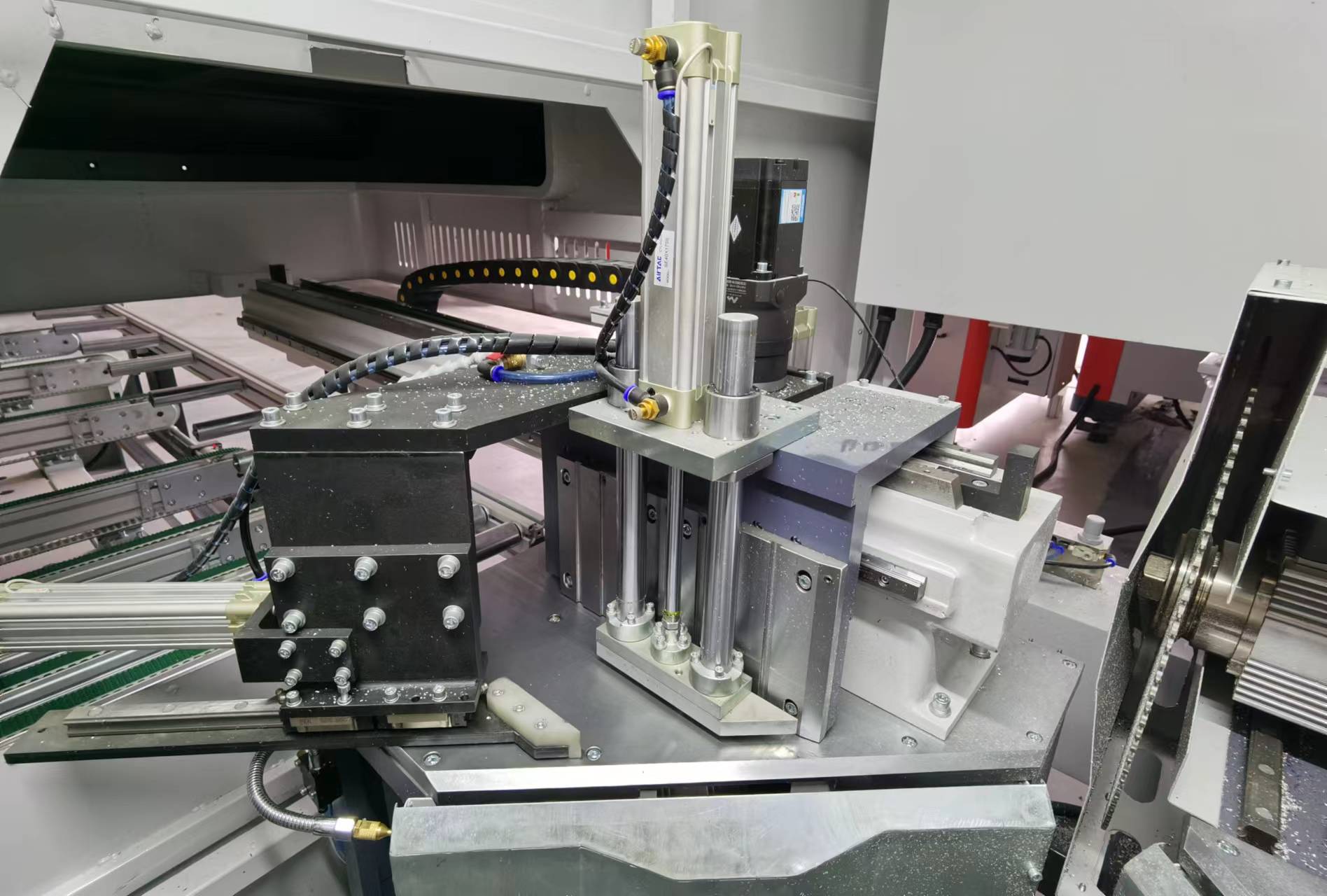

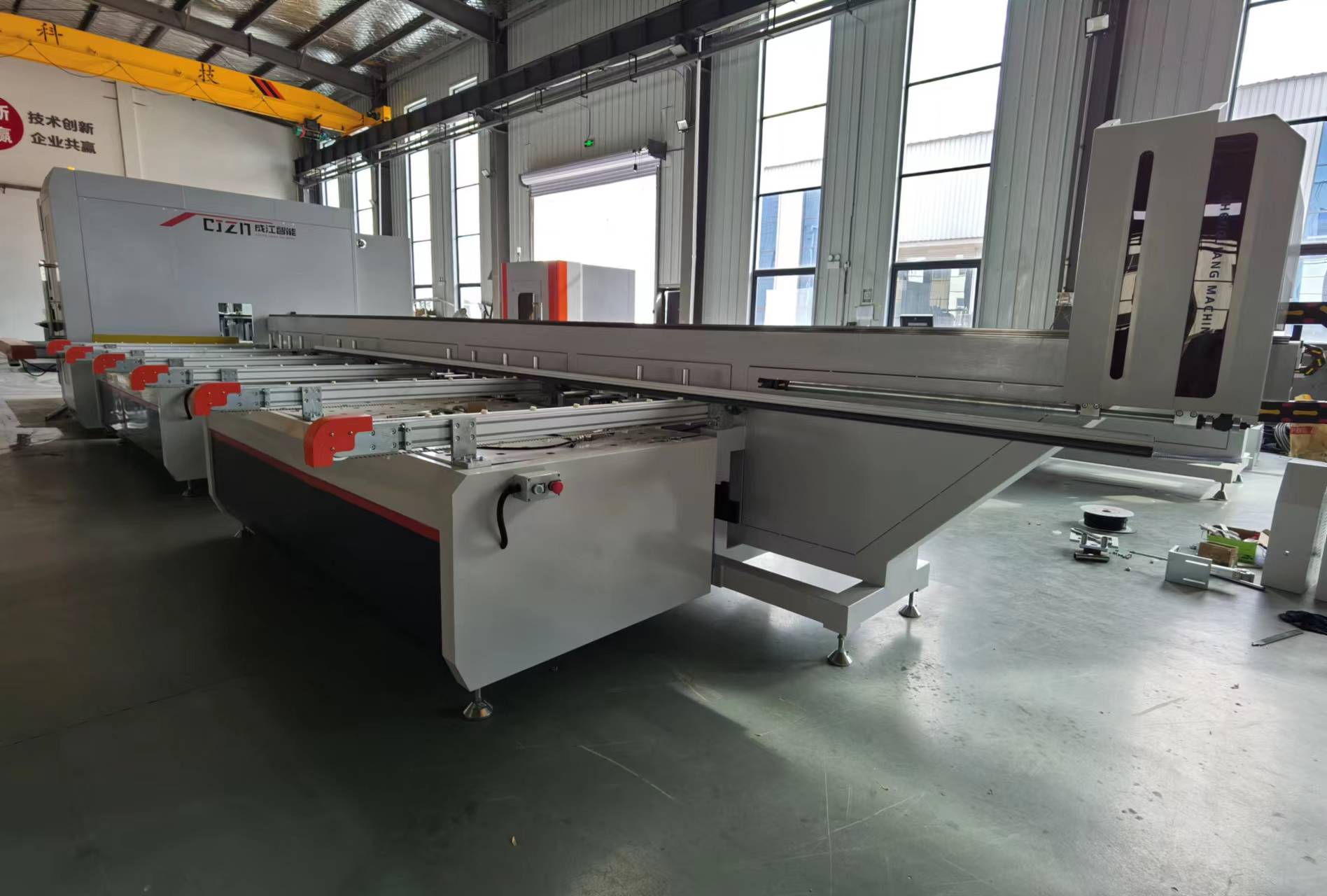

■  The automatic feeding workbench can continuously clamp profiles for cutting processing.

■  Automatically adjust the robotic arm position after changing profiles based on customer-established profile libraries.

■  The robotic arm movement uses imported high-precision gear racks to ensure feeding accuracy.

■  The mobile parts use high-precision linear guide pairs for smooth operation and processing accuracy.

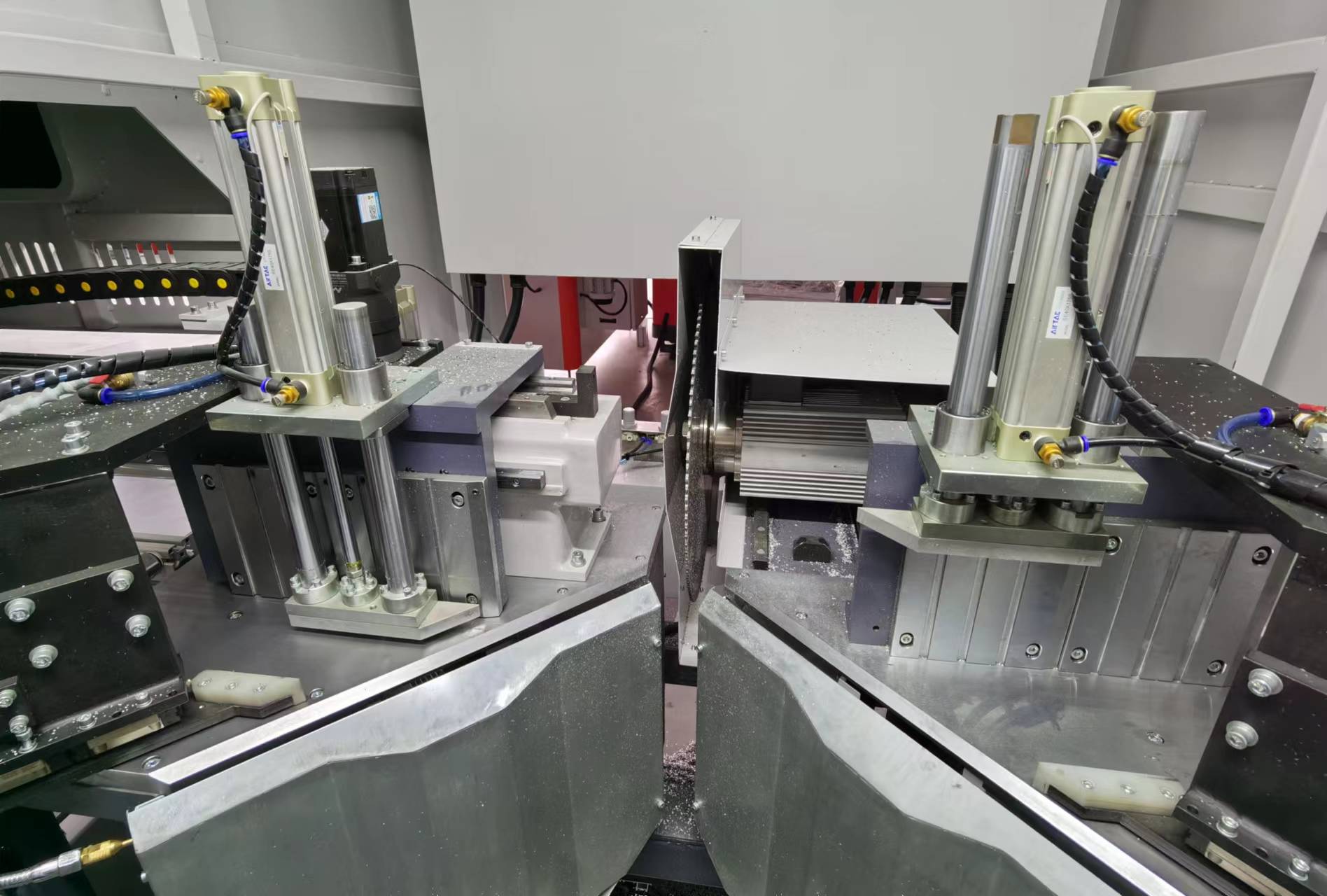

■  Directly connect the saw blade with imported motors for smooth cutting and high processing accuracy.

■  Fully enclosed design of the shell ensures operator safety.

■  Cutting with pneumatic-hydraulic damping cylinder feed ensures stability.

■  Unique design allows for cutting of ultra-short materials at 180mm.

■  Fast short material cutting and quick positioning.

■  High-quality carbon structural steel welded frame: Stress relief treatment during hot aging, precision machining.

■  Guides: X, Y, Z axes all use high-precision linear guides (Taiwan HIWIN).

■  Drive system: Uses imported all-digital AC brushless servo drive system.

■  Mist cooling system: Can be used with processing programs.

■  Control box: All main electrical components, industrial computer, control system are all imported original.

Product Details

Input power supply: 380V/50Hz

- Saw cutting motor power: 3×3.0kW

- Feeding motor power: 0.55kW

- Transfer discharge servo motor power: 0.75kW

- Working air pressure: 0.6~ 0.8MPa

- Saw blade specifications: Ф500×Ф30×4.4×120T

- Cutting profile height: 30~150mm

- Cutting profile width: 30~150mm

- Discharge length: 180~6,600mm

- Saw cutting angle: 45°, 90°, -45°

- Surface roughness: Ra 6.3μm

- Dimensions: 16,000×2,600×2,500mm

- Weight: Approximately 4,000kg
