CLJZ2Z-550*4200
Aluminum Profile Digital Display 45° Special Cutting Double-head Precision Cutting Saw
Customizable 500/600 saw blade models and CNC models

Contact us

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

86-186-6370-9391

Business Support

8618396817660

WhatsApp

Product Introduction

■ Suitable for high-precision and high-efficiency fixed 45° angle cutting and cutting of aluminum door and window curtain wall profiles in large quantities and widths.

■ Imported digital grating system automatically displays cutting length dimensions, with high repeat positioning accuracy and easy operation.

■ Developed models to adapt to the development of China's aluminum door and window and curtain wall processing industry.

■ Simple operation, reliable performance, advanced technology, easy maintenance.

■ Tools equipped with diamond saw blades for fast cutting speed, high productivity, and high processing accuracy.

■ The two saw heads can work independently or simultaneously.

■ When working simultaneously, it can cut the required length and angles at both ends of the profile at once.

■ Can be customized according to user requirements for inward swinging models.


Product Details

- Input power supply: 380V/50Hz

- Saw cutting motor: 2×3.0kW

- Motor speed: 2,800r/min

- Working air pressure: 0.5~0.8MPa

- Air consumption: 60L/min

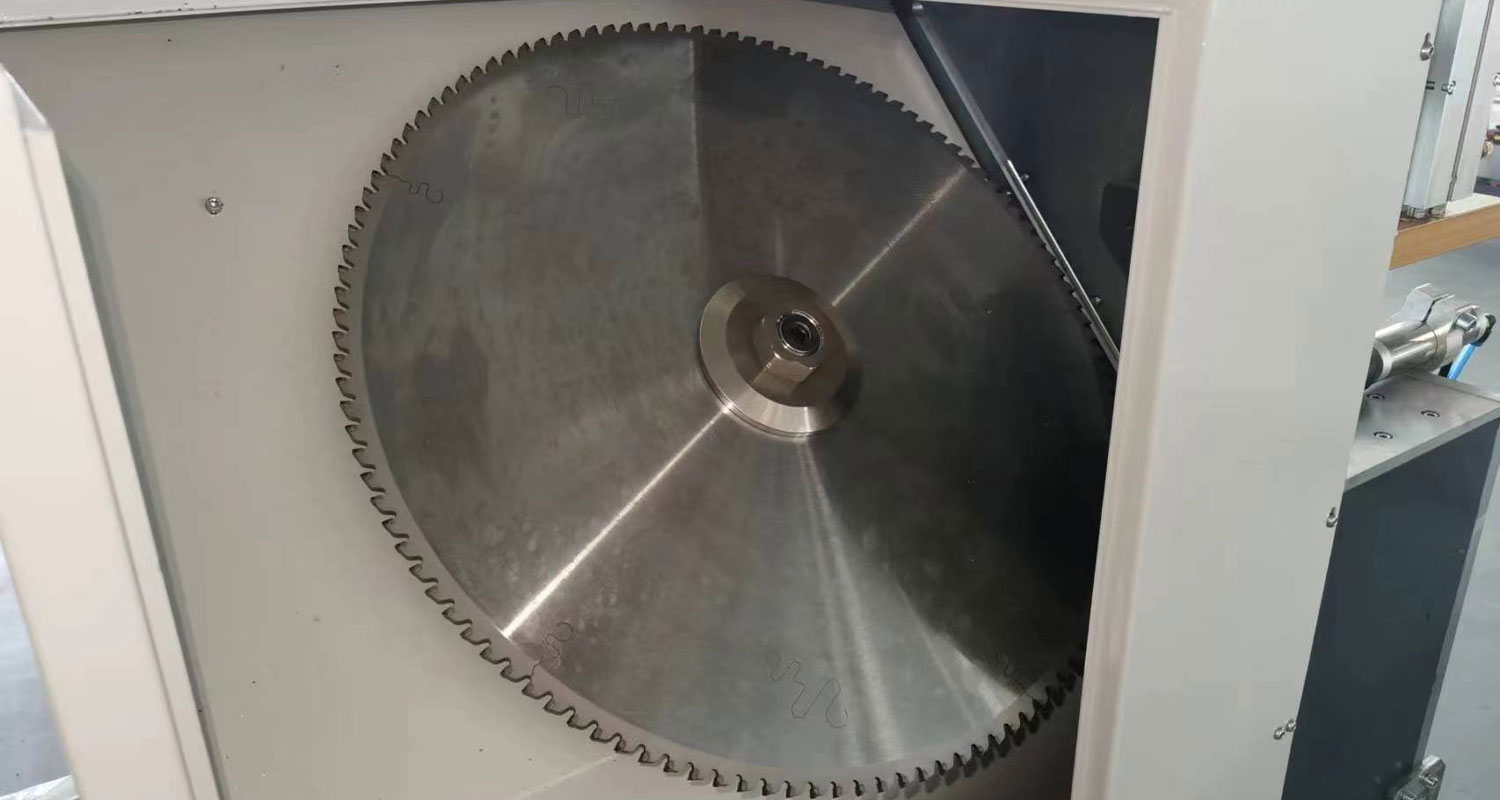

- Saw blade specifications: Ф550×Ф30×4.4   Z=140

- Saw cutting length: Maximum 4,200mm   Minimum 360mm     Plus two profile heights

- Cutting width × height: Maximum 165mm × 170mm

- Saw cutting angle: 45°

- Cutting angle error: ±5 ′

- Flatness of cutting surface: ≤0.10mm

- Cutting surface roughness: Ra12.5μm

- Dimensions: 5,800×1,750×1,950mm

- Weight: Approximately 1,800kg
