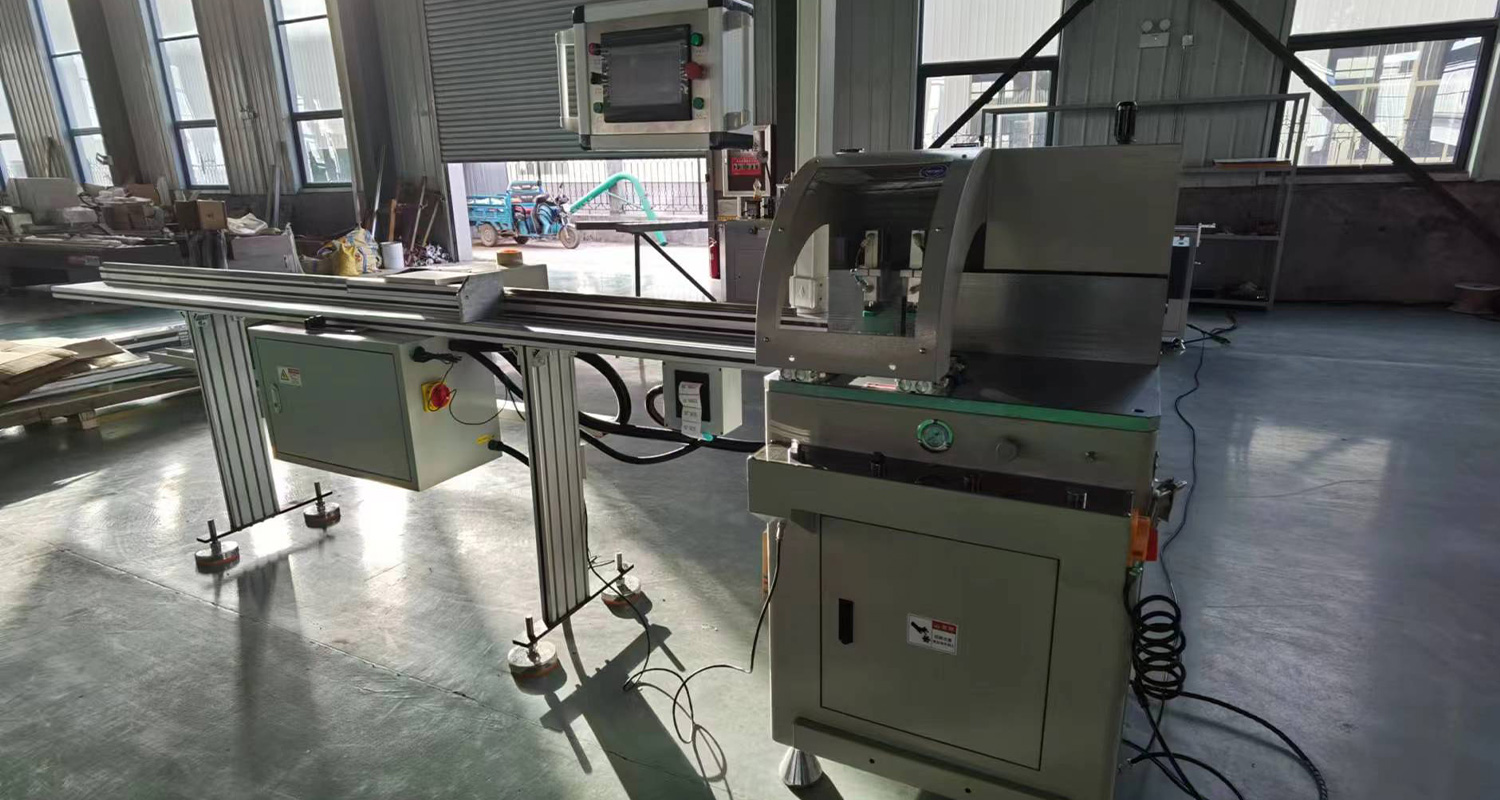

CLYT-CNC-350
Aluminum Profile CNC Pressure Bar Cutting Saw

Contact us

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

86-186-6370-9391

Business Support

8618396817660

WhatsApp

Product Introduction

■ Suitable for the precise cutting process of 90° aluminum alloy glass pressure line profiles, equipped with a wireless handheld transmission system, suitable for large-scale continuous production.

■ Using infrared transmission for accurate precision without the need for secondary modifications.

■ Equipped with a tool detection system to indicate tool lifespan.

■ Equipped with a wireless handheld transmission system and automatic material reduction function.

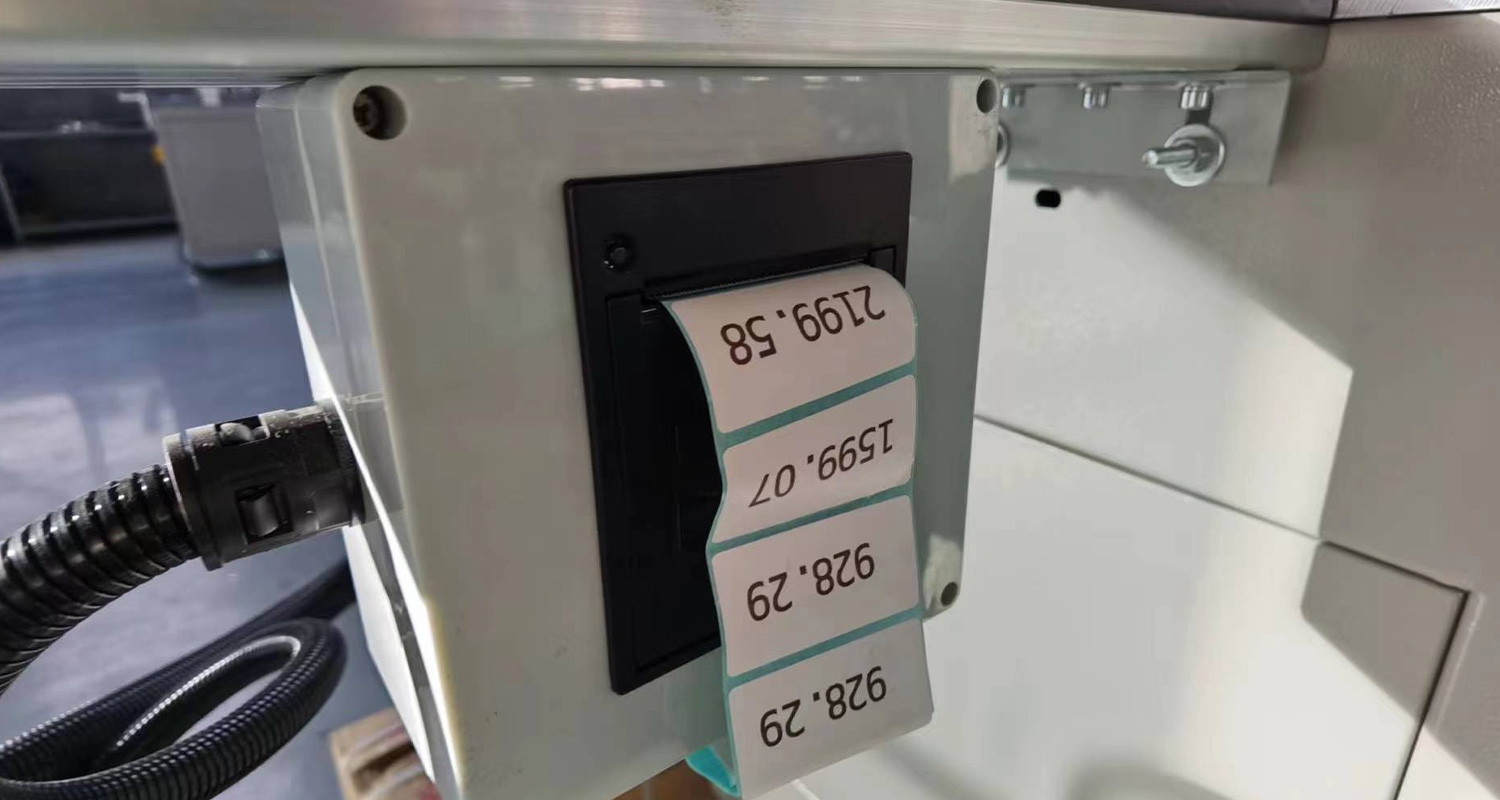

■ Standard with coding function for easy use of material types by customers, preventing selection errors and increasing on-site utilization.

■ Equipped with a 2.0kW spindle motor from Seimec, providing high power and strong load capacity for future use assurance.

Product Details

- Input power supply: 380V/50Hz

- Motor power: 1.5kW

- Motor speed: 2,800r/min

- Working air pressure: 0.6~0.8Mpa

- Air consumption: 15V'min

- Saw blade specifications: Ф350xФ30x3.2mm

- Cutting width: Maximum 70mm

- Cutting height: Maximum 80mm

- Saw cutting angle: 90°

- Dimensions: 8,500 x 1,200 x 1,100mm

- Weight: Approximately 500kg
