CLJJA-500B

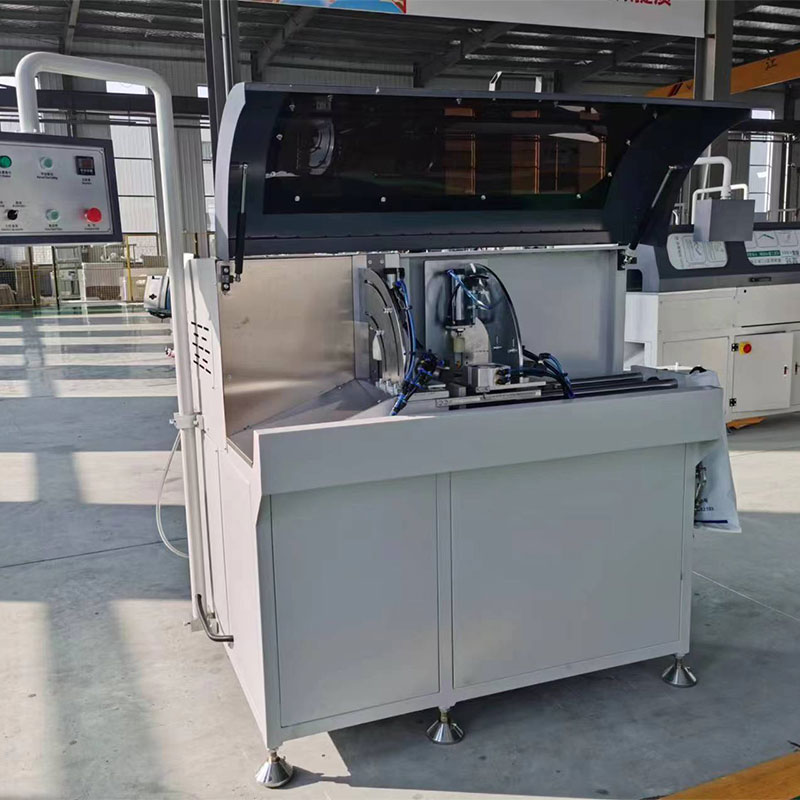

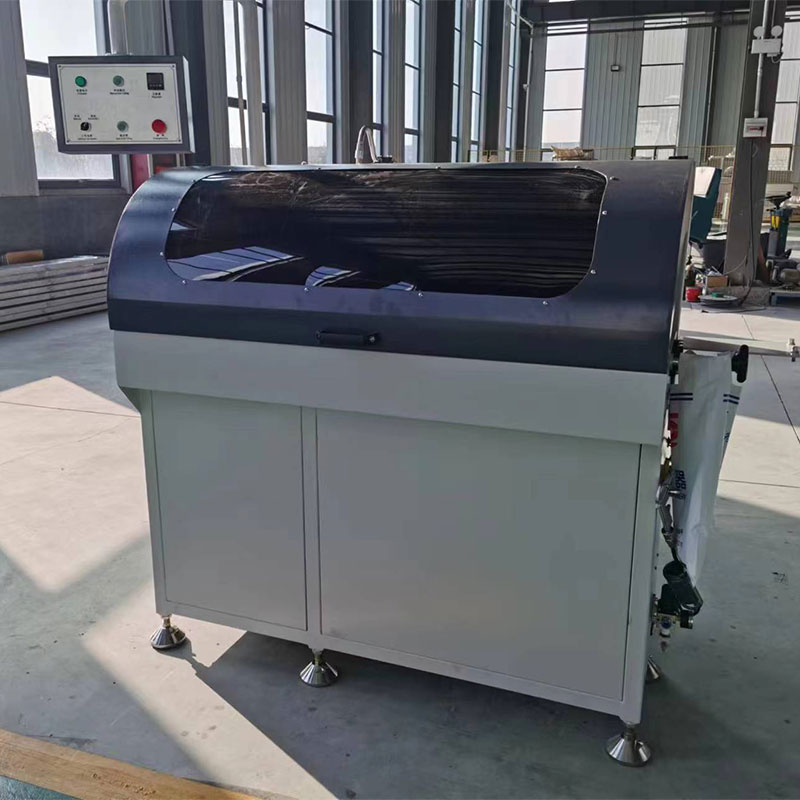

Aluminum Profile Automatic Angle Code Cutting Saw

Contact us

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

86-186-6370-9391

Business Support

8618396817660

WhatsApp

Product Introduction

■ Suitable for cutting angle code profiles of aluminum doors and windows with one clamping for continuous cutting of angle code profiles.

■ Adjustable angle pressure technology for quick and efficient adjustments.

■ Feed motion pair uses linear motion bearings for low resistance and high processing accuracy.

■ Hard alloy saw blade for high cutting speed, convenient operation, safety, and reliability.

■ Achieves waste-free cutting.

■ Ideal for large-scale production of angle code profiles for aluminum doors and windows.

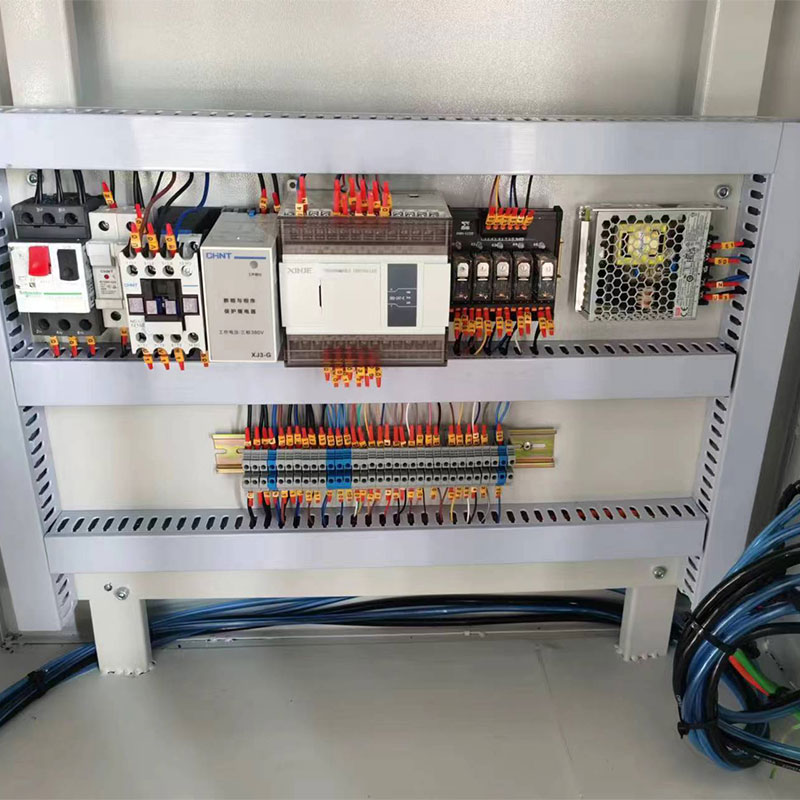

■ The circuit system is equipped with a motor phase sequence protector to enhance system safety.

Product Details

- Input power supply: 380W/50Hz

- Motor power: 2.2kw

- Motor speed: 2,800v/min

- Working air pressure: 0.5~0.8Mpa

- Automatic feed length: 3~380mm

- Saw blade feed speed: 0-3m/min

- Saw blade specifications: Ф500 x 30 x 4.4 Z=96

- Cutting width × height: 145x145mm

- Dimensions: 6,000x1,770x1,840mm

- Weight: Approximately 600kg
